Reverse Engineering PCB
-
Printed Circuit Board Wiring Diagram Reverse Engineering
The main parasitic elements generated by printed circuit board wiring diagram reverse engineering include: parasitic resistance, parasitic capacitance and parasitic inductance. For example: the parasitic resistance of the PCB is formed by the tra...
-
Circuit Board Parasitic Inductance Cloning Principle
Circuit Board Parasitic Inductance Cloning Principle is similar to that of parasitic capacitance. It is also to layout two traces when reverse engineering electronic circuit board design. On two different layers, place one trace on top of the other ...
-

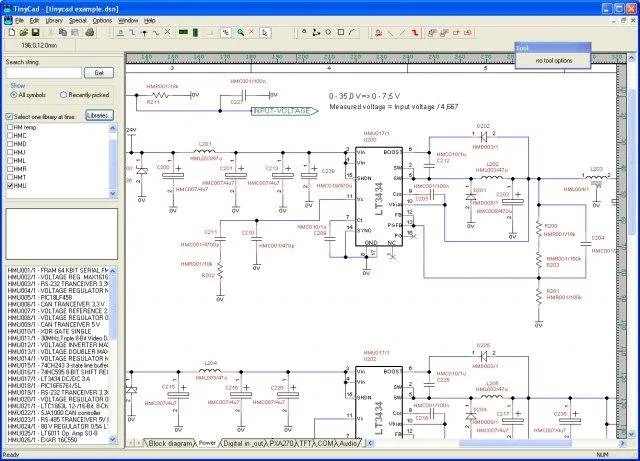

Reverse Engineering Electronic Circuit Board Layout Design
The most commonly used technique of reverse engineering electronic circuit board layout design is to change the size between traces according to the capacitance equation. The most effective size to change is the distance between the two traces. R...
-
Reverse Engineering 2 Layer PCB Board Layout Parasitic Elements
Reverse Engineering 2 Layer PCB Board Layout Parasitic Elements may cause problem in: parasitic capacitance and parasitic inductance. Reverse Engineering 2 Layer PCB Board Layout Parasitic Elements may cause problem in: parasitic capacitance and ...
-

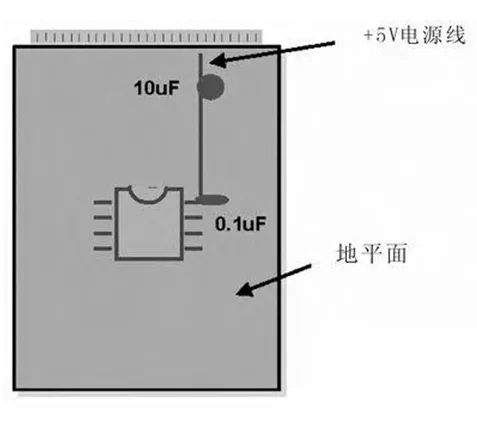

Bypass Capacitor and Decoupling Capacitor Application in Cloning PCB Board Gerber File
When Cloning PCB Board Gerber File, both analog devices and digital devices need these types of capacitors, and both need to connect a capacitor close to their power supply pins. This capacitor value is usually 0.1µF. Another type of capacitor is re...
-
Digital Printed Circuit Board Reverse Engineering
The number of digital designers and Digital Printed Circuit Board Reverse Engineering experts in the engineering field is constantly increasing, which reflects the development trend of the industry. The number of digital designers and Digital Pri...
-

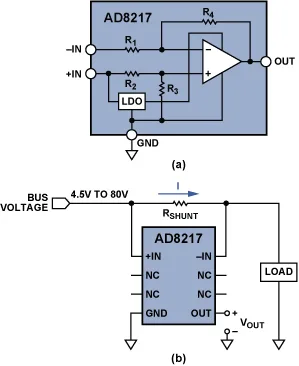

Cloning Circuit Board Current Loop Design
Cloning Circuit Board Current Loop Design must follow below rules: Digital current should not flow through analog devices.When the digital device is switched, the digital current in the loop is quite large, but it is only instantaneous. This phen...
-
Reverse Engineering PCB Board Current Loop Design
Reverse Engineering PCB Board Current Loop Design with or without ground plane, for the current loop, you need to pay attention to the following basic matters: If you use traces, make them as thick as possible.If printed circuit board reverse rer...
-

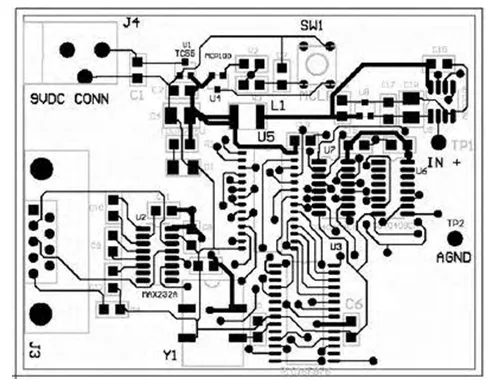

Reverse Design Double Side PCB Board Layout Manually
When Reverse Design Double Side PCB Board Layout Manually, in order to ensure the correct implementation of the circuitry pattern, some general printed circuit board design guidelines need to be followed: try to use the ground plane as the current l...
-
Double Layer Printed Circuit Board Reverse Routing
Below Figure shows the top layer of a Double Layer Printed Circuit Board Reverse Routing layout design. Double Layer Printed Circuit Board Reverse Routing layout design The bottom layer of Double side PCB board Reverse engineering is shown in...
