Reverse Engineering Printed Circuit Board for Electro-Magnetic Shielding

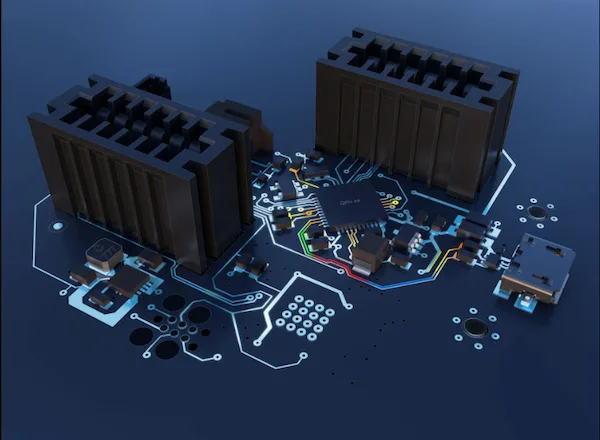

Reverse engineering printed circuit board electro-magnetic shielding design is critically important for PLC controller PCBs used in industrial control and automation systems. Programmable Logic Controllers (PLCs) operate in electrically noisy environments filled with motors, relays, inverters, and long cable runs that generate significant electromagnetic interference (EMI). If shielding design is not properly understood and replicated, signal integrity can be compromised, leading to unstable control logic, false triggering, or even system failure. Therefore, reverse engineering is not limited to copying circuit connections; it must recover and restore the original shielding strategy, grounding architecture, and noise suppression techniques embedded within the PCB design.

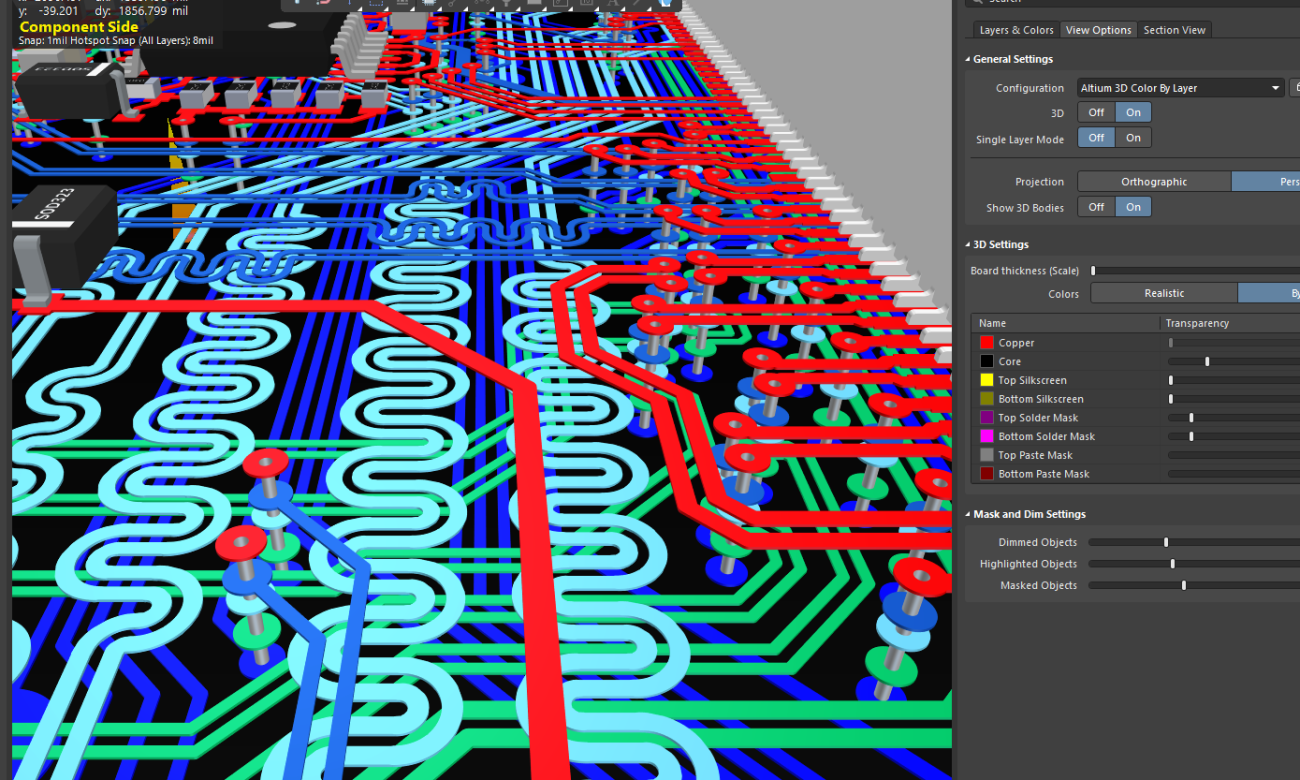

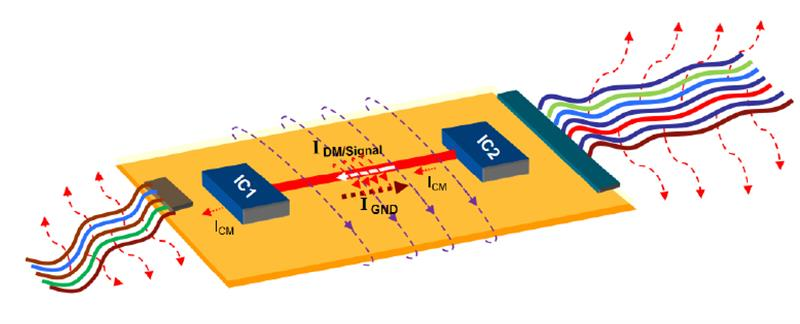

A key reason shielding-focused reverse engineering is essential lies in the complexity of mixed-signal environments within PLC controller PCBs. These boards typically integrate digital control units, analog input channels, communication interfaces, and power regulation circuits on a single platform. During reverse engineering, engineers must carefully analyze how ground planes are segmented, how return paths are controlled, and how sensitive analog signals are isolated from noisy power sections. Recreating the schematic diagram, netlist, and layout drawing alone is insufficient unless the electromagnetic behavior is also preserved. Proper shielding design ensures that high-frequency noise does not couple into signal lines, maintaining stable communication between sensors, actuators, and controllers across the automation network.

1> Effective electro-magnetic shielding on power supply, isolate high voltage power supply with sensitive circuit especially for switch power supply, which can cause high frequency radiation and transmission interference. Use power supply transformer with ESD shielding to suppress the common code interference on the power supply line. Multiple shielding isolated transformer can have better functions.

2> For all the circuit functional state of Printed Circuit Board reverse engineering, power supply should keep low output impedance, the output capacitor should express low impedance even within the frequency scope, at the same time, manostat should be given fast enough responding speed to bate the high frequency ripple wave and transition load.

3> when reverse engineering Printed Circuit Board commutation diode, it should work in the lowest density current, provide sufficient radio frequency side road for zener diode;

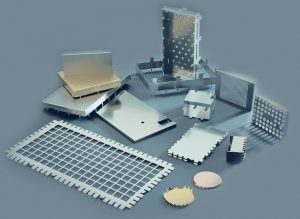

Another important aspect is compliance with industrial EMC standards and long-term reliability. PLC systems are expected to operate continuously in harsh environments, where electromagnetic disturbances are unavoidable. Reverse engineering allows engineers to identify the original design intent behind shielding components such as ferrite beads, common-mode chokes, shielding enclosures, and decoupling networks. By restoring these elements and accurately reproducing the Gerber file and bom list, engineers can ensure that the remanufactured PCB meets the same electromagnetic compatibility requirements as the original. In some cases, reverse engineering also enables controlled redesign or redevelopment, allowing improvements in shielding effectiveness while maintaining compatibility with existing industrial systems.

Finally, understanding electro-magnetic shielding through reverse engineering provides significant value for maintenance, refurbishment, and lifecycle extension of PLC controller PCBs. Many industrial systems rely on legacy hardware where original design documentation is no longer available. Without proper shielding reconstruction, attempts to clone or duplicate the PCB may result in degraded performance or increased susceptibility to interference. By combining detailed inspection, signal analysis, and layout reconstruction, reverse engineering ensures that both electrical functionality and electromagnetic robustness are preserved. This approach enables reliable reproduction and remanufacture of PLC PCBs, reduces downtime in industrial operations, and supports the continued stability of automation systems in demanding environments.
