Heat Shrinkable Analyzer PCBA Duplicate
Heat Shrinkable Analyzer PCBA Duplicate is a comprehensive engineering service focused on the reverse engineering, reproduction, and remanufacturing of circuit boards used in heat shrinkable material testing and analysis equipment. These analyzers are essential in industries such as electrical insulation, automotive wire harness production, and aerospace materials testing, where precise control of temperature and shrink characteristics is critical. When the original circuit documentation — such as Gerber files, schematic diagrams, layout drawings, BOM lists, or netlists — is missing or outdated, reverse engineering and duplication of the PCBA becomes the most efficient way to restore full production capability and functionality.

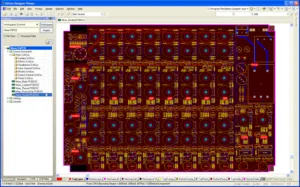

The process of Heat Shrinkable Analyzer PCBA Duplicate begins with a meticulous inspection and disassembly of the original equipment. Engineers start by analyzing the Printed Circuit Board Assembly (PCBA), documenting its dimensions, layer count, and component arrangement. Through high-resolution imaging and multi-angle scanning, the internal copper trace patterns are extracted and used to recreate the Gerber file and layout drawing. This step ensures that the new design accurately reflects the routing, pad positioning, and grounding scheme of the original analyzer’s control board. Because these analyzers often handle high-precision temperature measurement and control, maintaining the correct thermal feedback and sensor interface routing is critical for performance replication.
As a dedicated PCBA duplicate company, we have been engaged in single side, double side and multilayer PCB card replication, MCU Crack, PCBA manufacture and prototype production., etc. combine with most updated EDA design software, professional PCBA duplicate engineers and advanced technology, we can duplicate single side, double side, and multilayer (max 32 layers) PCBA.
Next, the schematic diagram is recreated by analyzing the logical connections between sensors, power drivers, and control circuits. Each component on the board is identified and documented into a BOM list, which includes part numbers, specifications, and sourcing information. In some cases, obsolete components are identified and substituted through redesign or redevelopment using equivalent models that preserve the same electrical parameters. The netlist is generated from the schematic to verify that all nodes and connections are properly matched to the original circuitry before moving forward to physical production.
Once the data package is validated, bare board production begins using the newly generated Gerber files. The manufacturing process involves precise control of layer registration, copper thickness, and solder mask alignment, as even small deviations could impact the analyzer’s heat detection accuracy. After fabrication, the component procurement process follows, sourcing all parts based on the BOM list and ensuring compliance with the correct tolerance and temperature ratings required by high-reliability testing instruments.
And duplicate different kinds of PCBA with blind / buried VIAs and 2nd phase research and development is available in view of customer to satisfy customer further expectation. Regarding to the Heat shrinkable analyzer PCBA Copying is a new progress and typical sample we made, below are some instruction about this PCBA:
Technical Parameter:
Highest heating temperature: 230℃±0.3%;
Testing Orientation: Horizontal and Vertical measure;
Measurement scale: thermal dilation 27%; thermal contraction 5%;
Resolving Power: 0.013%;
Preciseness: ±0.05% abs.，±5% rel;
Measurement result: Dimension and time curve, record the measurement variation in any time points;
Loading extension: loading extension scale from 1 N/ 60 mm to 5 N/60 mm;
Sample dimension: minimum 210mm×(60±0.5)mm;
Testing size: 60mm×60mm;
Output terminal: RS 232 serial terminal;
Preciseness: 0.013%;
Power supply: 230V，50Hz / 115V，60Hz;
Device dimension: 300×280×320 mm;
Device weight: 8.5kg;
Device performance:
Testing temperature can be automatically controlled by computer;
Automatically test the environment humidity to eliminate the effect from environment;
Can measure the variation situation of MD orientation and CD horizotation;
Operating software with friendly interface;
The assembly phase combines automated and manual soldering techniques depending on the board’s complexity and component density. After assembly, the duplicated board is subjected to functional verification tests that simulate real-world analyzer operations — verifying temperature control loops, digital display accuracy, and safety protection mechanisms. These test results are documented within the quality control documentation, serving as proof of adherence to original design intent.
Converting the reverse engineered documents into real production requires careful cross-validation between schematic data and layout accuracy. Engineers must pay close attention to ground isolation, signal integrity, and power distribution — especially in circuits that control heating elements or thermal sensors. Even slight routing errors or inadequate thermal reliefs could result in temperature instability or system malfunction.
Test data can be output through MS EXCEL;
Circuit Engineering CO.,LTD can clone PCB card and extract the producible Pcba Gerber File; we can also convert the Pcba Gerber File to any other Pcba software format include POWERPCB, PROTEL99, PADS2000.,etc. We can also help customer reverse engineering PCB schematic diagram, Pcba package diagram, BOM list and outsource the Pcba manufacture include prototype and mass production. Additional, second phase development of Pcba in view of customer requirement is available. Microwave hyperthermia circuit card duplicate and its second phase development is another successful case our company has in this industry.
During the Heat Shrinkable Analyzer PCBA Duplicate process, common difficulties include identifying unmarked or proprietary ICs, matching analog calibration circuits, and reconstructing firmware-related interfaces that control sensor feedback. Overcoming these challenges demands both experience in reverse engineering and expertise in thermal control circuit design.
In conclusion, Heat Shrinkable Analyzer PCBA Duplicate is not just a technical restoration process—it is a bridge that connects past innovations to present production demands. By using reverse engineering, replication, and remanufacturing techniques, this service helps companies recover and restore valuable electronic assets that would otherwise be lost. It allows manufacturers and laboratories to continue producing reliable heat shrinkable analyzers without redesigning entire systems from scratch, ensuring cost efficiency, long-term maintainability, and consistent product performance across multiple production cycles.
