Car Reverse Aid Circuit Card Clone
Modern vehicles rely heavily on electronic systems to enhance safety and convenience. One critical subsystem in today’s cars is the reverse aid circuit, responsible for assisting drivers with rear-view sensing, obstacle detection, and parking assistance. However, as automotive electronics rapidly evolve, many Car Reverse Aid Circuit Cards used in older vehicle models become discontinued, unsupported, or poorly documented. When a critical module fails and replacement parts are unavailable, the best solution is to clone the circuit card.
This process, commonly known as Car Reverse Aid Circuit Card Clone, involves reverse engineering the physical PCB to recreate all necessary technical documentation and enable remanufacture of the card.
Understanding the Role of Reverse Aid Circuit Boards
The reverse aid circuit board in a car typically integrates a network of ultrasonic sensors, microcontrollers, signal processors, and user-interface elements such as buzzers or LED displays. It must process real-time distance measurements, control logic, and environmental filtering — often under harsh automotive conditions like temperature fluctuation, moisture, and vibration.
These boards are usually compact, multi-layered, and densely populated, sometimes containing BGA components or specialized chipsets that are no longer in production. Therefore, duplicating them requires both advanced tools and in-depth technical knowledge.
Challenges in Cloning Car Reverse Aid Circuit Boards
Cloning such a board is not as simple as making a visual copy. The process demands detailed technical steps:
- Initial inspection and identification of all piece-parts
- High-resolution imaging to expose track patterns across all layers
- Accurate layer separation for multilayer analysis
- Rebuilding the schematic diagram, Gerber file, and netlist
- Extracting or reconstructing the BOM list, especially for obsolete or rebranded parts
- Producing a layout drawing for manufacturing
- Prototype assembly and functional testing to ensure match with the original performance
Each stage requires precise handling and may involve refurbishing worn components, restoring corroded pads, or even redeveloping proprietary logic if firmware extraction is not possible. The presence of automotive-grade safety checks, fail-safes, and electromagnetic compliance also increases the complexity.
Strategic Value for Companies and Car Owners
Whether you’re a vehicle service center, automotive OEM, or a hobbyist trying to preserve a vintage car, a Car Reverse Aid Circuit Card Clone service offers significant advantages. By reproducing discontinued modules, companies can extend the lifecycle of their product lines and minimize costs associated with redesign or full system replacements.
For individuals, this service enables the recovery of valuable vehicle features that would otherwise be lost, especially when OEM replacements are discontinued. With access to recreated technical documents — including Gerber files, schematic diagrams, and BOM lists — clients gain flexibility to remanufacture the PCB locally or integrate it into broader system redesign efforts.
A Forward Path Through Legacy Recovery
In an industry where obsolescence often forces premature replacement, cloning car reverse aid circuit boards offers a smarter alternative. It blends reverse engineering expertise with practical application, delivering a path to replicate aging hardware and restore lost functionality with confidence and precision.

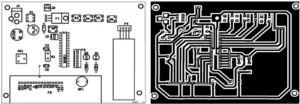

Car Reverse Aid Circuit Card Clone project will help engineer extract all the necessary files which include layout drawing, Gerber file, BOM and schematic diagram by PCB card cloning in below format through which your Car Reverse Aid Circuit Card can be manufacture and assembly anywhere in the world, we can ensure the accuracy of your data by means of prototype running.
Here is sample of files and drawings you will receive, based on a typical 4 layer Car Reverse Aid Circuit Card Clone with components mounted on two sides:

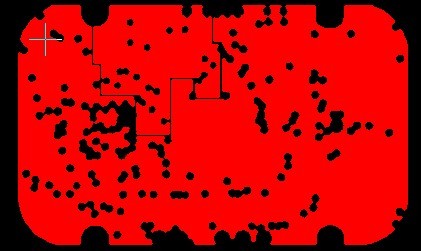

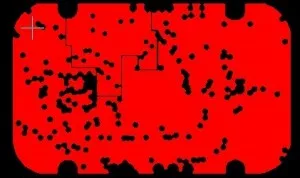

1st Grounding Layer of Car Reverse Aid Circuit Card:

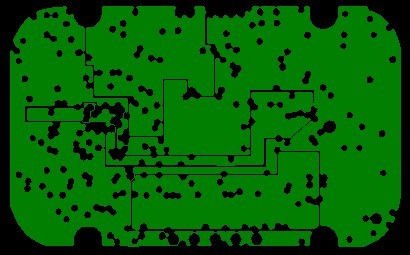

2nd Grounding Layer of Car Reverse Aid Circuit Card:

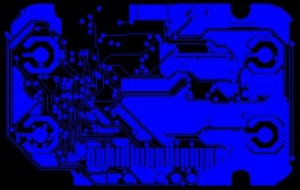

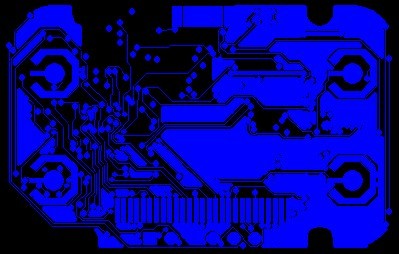

BOTTOM Layer of Car Reverse Aid Circuit Card:

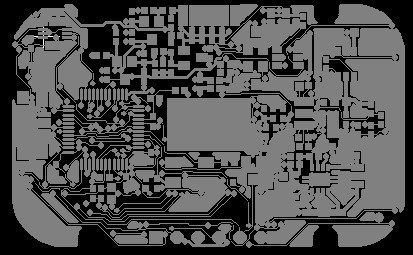

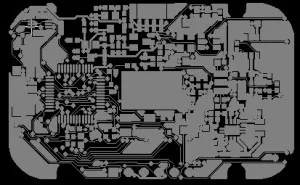

TOP Layer of Car Reverse Aid Circuit Card:

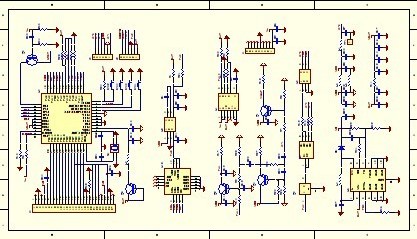

Schematic Diagram of Car Reverse Aid Circuit Card:
Circuit Engineering Company Limited provide a complete PCB Reverse Engineering, PCB Clone and PCB Restoration service, Rapid Prototyping and functional test services using the latest technologies combined with traditional skills for a wide range of industries. By integrating our traditional skills with the latest technologies, we can offer clients a comprehensive portfolio of product development services all under one roof. For more details please contact our customer service team.
