Handheld RFID Inspector PWB Cloning

The Handheld RFID Inspector has become an indispensable tool in industries such as logistics, warehouse management, asset tracking, access control, and anti-counterfeiting verification. At the core of this device lies a highly specialized Printed Wiring Board (PWB), which integrates RFID antenna circuits, microcontroller units, power management systems, and communication interfaces. Without this board, the entire handheld inspector cannot function.

However, many of these devices face a common challenge: as models are phased out, their original schematic diagrams, Gerber files, layout drawings, BOM lists, and netlists may become unavailable. Once the documentation is lost or outdated, repairing or reproducing these boards becomes nearly impossible through conventional methods. This is where our service in Handheld RFID Inspector PWB Cloning proves invaluable.

Handheld RFID Inspector PWB Cloning needs to copy electronic PCB board gerber file, layout diagram and schematic, re-manufacture printed circuit board

After you get started of your Handheld RFID Inspector PCB card replication project with us, all the necessary files will be submited in below format through which your PCB circuit board Cloning can be manufacture and assembly anywhere in the world, we can ensure the accuracy of your data by means of prototype running.

Understanding the Complexity of RFID Inspector PWBs

Unlike a generic electronic circuit board, the PWB used in a handheld RFID inspector often integrates a combination of analog and digital circuitry. These include:

• RF signal processing for detecting and interpreting RFID tags at various frequencies.
• Encryption and security modules that ensure only authorized tags are validated.
• Battery management circuits to support long-term field use.
• User interface components such as displays, buttons, and communication ports.

Because of this complexity, reverse engineering such a board is not a trivial task. Careful extraction of design data is needed to ensure the recovered documents are accurate and suitable for remanufacture, redevelopment, or redesign.

---

The Process of Handheld RFID Inspector PWB Cloning

Our approach to Handheld RFID Inspector PWB Cloning follows a structured methodology:

1. Initial Assessment – Evaluating the physical board for damage, complexity, and layer count.
2. Component Analysis – Identifying and cataloging every part to create a verified BOM list.
3. Desoldering and Imaging – Carefully removing components where necessary and capturing high-resolution images of copper traces.
4. Track Mapping & Netlist Recreation – Reconstructing the electrical pathways and compiling a verified netlist.
5. Schematic Diagram Recovery – Rebuilding functional logic from the traced connections.
6. Gerber File and Layout Drawing Generation – Producing precise manufacturing data for fabrication.
7. Prototype Reproduction and Testing – Building a working prototype to validate performance.

Through these steps, we can restore, replicate, and duplicate the original board with near-perfect accuracy.

Here is sample of files and drawings you will receive, based on a typical 4 layer Handheld RFID Inspector printed circuit board Clone with components mounted on two sides:

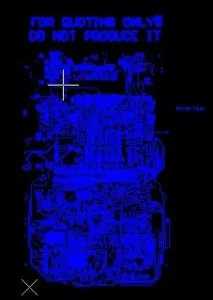

Bottom Side of Gerber File from Handheld RFID Inspector pcba:

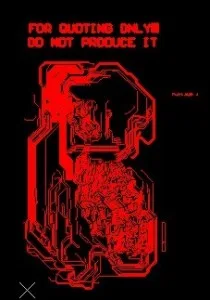

1st midlayer of Gerber File from Handheld RFID Inspector PWB:

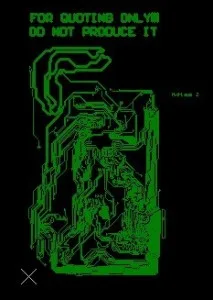

2nd midlayer of Gerber File from Handheld RFID Inspector PC board:

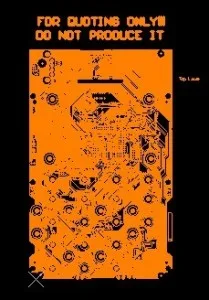

Top Side of Gerber File from Handheld RFID Inspector PCB board:

For companies still relying on older handheld RFID inspectors, recreating the PWB through reverse engineering offers several advantages:

• Cost Savings – Avoid the high expense of replacing entire fleets of devices by reproducing only the boards.
• Document Restoration – Obtain complete sets of schematic diagrams, Gerber files, and BOM lists, which were lost when the product was phased out.
• Refurbishment & Redevelopment – Extend the life of existing systems or adapt them for new applications.
• Design Redesign – Opportunity to redesign or refurbish circuits with upgraded components for improved performance or compliance with modern standards.

The restored PWB boards can be integrated into a wide range of handheld RFID inspector applications, including:

• Warehouse and logistics management – Scanning assets and verifying shipments.
• Security and access control – Authenticating RFID-enabled passes and credentials.
• Retail and anti-counterfeiting – Verifying authenticity of branded goods.
• Maintenance of legacy equipment – Supporting industries where inspectors are critical but no longer produced.

Handheld RFID Inspector PWB Cloning is more than a technical exercise—it is a business continuity solution. By leveraging advanced reverse engineering techniques, we help clients recover, restore, and reproduce vital circuit data, ensuring that even phase-out products remain serviceable and valuable. Whether your goal is to duplicate legacy boards, remanufacture replacements, or redesign for future applications, our cloning service safeguards your investment and extends the functional life of your surveillance and tracking infrastructure.
