3D Reverse Engineering Flowchart

The ultimate goal of 3d reverse engineering systems is to realize an intelligent 3D scanner. However, there is a long way to go. Even capturing shape and translating it into a CAD model is a difficult and complex problem. In spite of several encouraging partial results in particular areas, a fully automatic solution to build a complete and consistent CAD model is still a goal.

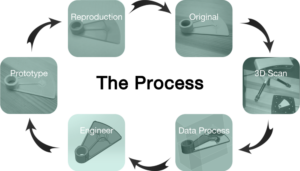

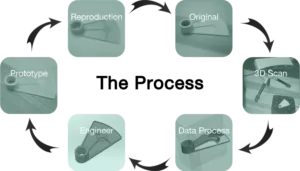

The 3d reverse engineering procedure can be characterized by the below flowchart:

Of course this sequence is fairly notional. In fact, these phases are often over-lapping and instead of the sequential process shown, several iterations are required. Nevertheless, this outline may help you to understand the information flow and serves as a basis for organizing the content of our service.
